Features:
1. Die-casting aluminum material cabinet with fast locks, light weight, easy to install and disassembled.
2. Wide viewing angle(H: 160°; V:160°).
3. Long life time(>100,000 Hours), cost-effective.
4. Competitive factory price.
5. Seamless splicing, no full screen display of patchwork fine point.
Product Technical Parameter
| P2.97 Full Color Outdoor Rental LED Display Screen |
| Specification | I tem No. | P2.97 die-cast aluminium |
| lassification | Full color |
| Pixel pitch | 2.9mm |
| Size of module (mm*mm) | 250*250 mm |
| Pixel density | 112896 dots/m2 |
| Pixel composition | 1R1G1B |
| LED encapsulation | SMD1921 |
| Resolution of module | 84*84 |
| Best viewingangle(Horizontal/Vertical) | 140°/120° |
| Brightness | ≥5000nits |
| Driving method | 1/21Scan |
| Refresh rate | ≥3840HZ |
| Working voltage | AC 220±10% or 110±10% |
| Best viewing distance | ≥3m |
| Cabinet size | 500*500mm |
| Ingress protection | IP65 |
| Cabinet material | Die casting aluminum |
| Greyscale | 14bits |
| Environment temperature range | -20-60℃ |
| Humidity(working) | H:140° V:140° |
| Color Temperature | 10-95% |
| Input Voltage | AC110-220V±15% 50-60Hz |
| service life | >100,000 Hours Theoretical value |
Characteristics of LED Film Screen:

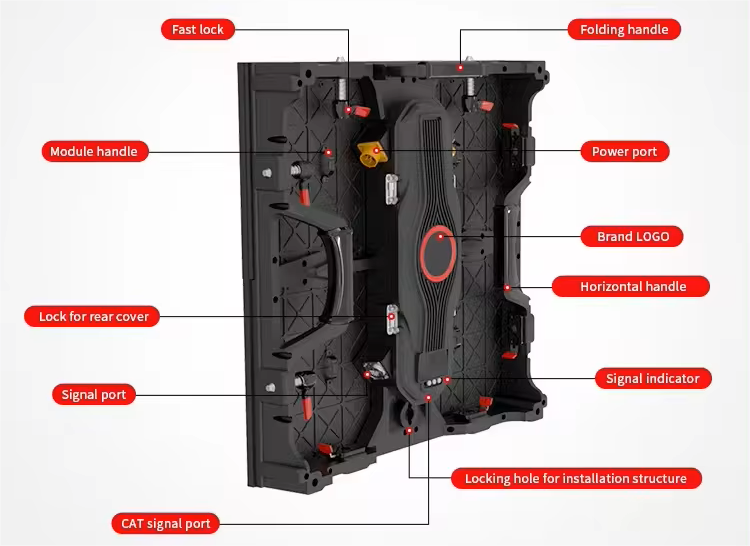

1, Die-casting Aluminum cabinet, light weight, easy to install or disassemble.
2, Easy and fast to set up the screen, convenient to change the site with flight cases.
3, IP65 grade, full waterproof, high protection level.
4, High Brightness (over 5000nits) , still clear in the direct sunlight.
5, With fast locks, flexiblely adjust the screen size according to requirements.
H&S led displays:
1. Wide application field & short ROI time:
commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen
air port LED display screen, telecommunication LED display screen system for information showing and instruction .
2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system
4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.
